DigiTemp
- Digital Mixing Valves
- 85 to 270 GPM at 10psi
- Large commercial applications

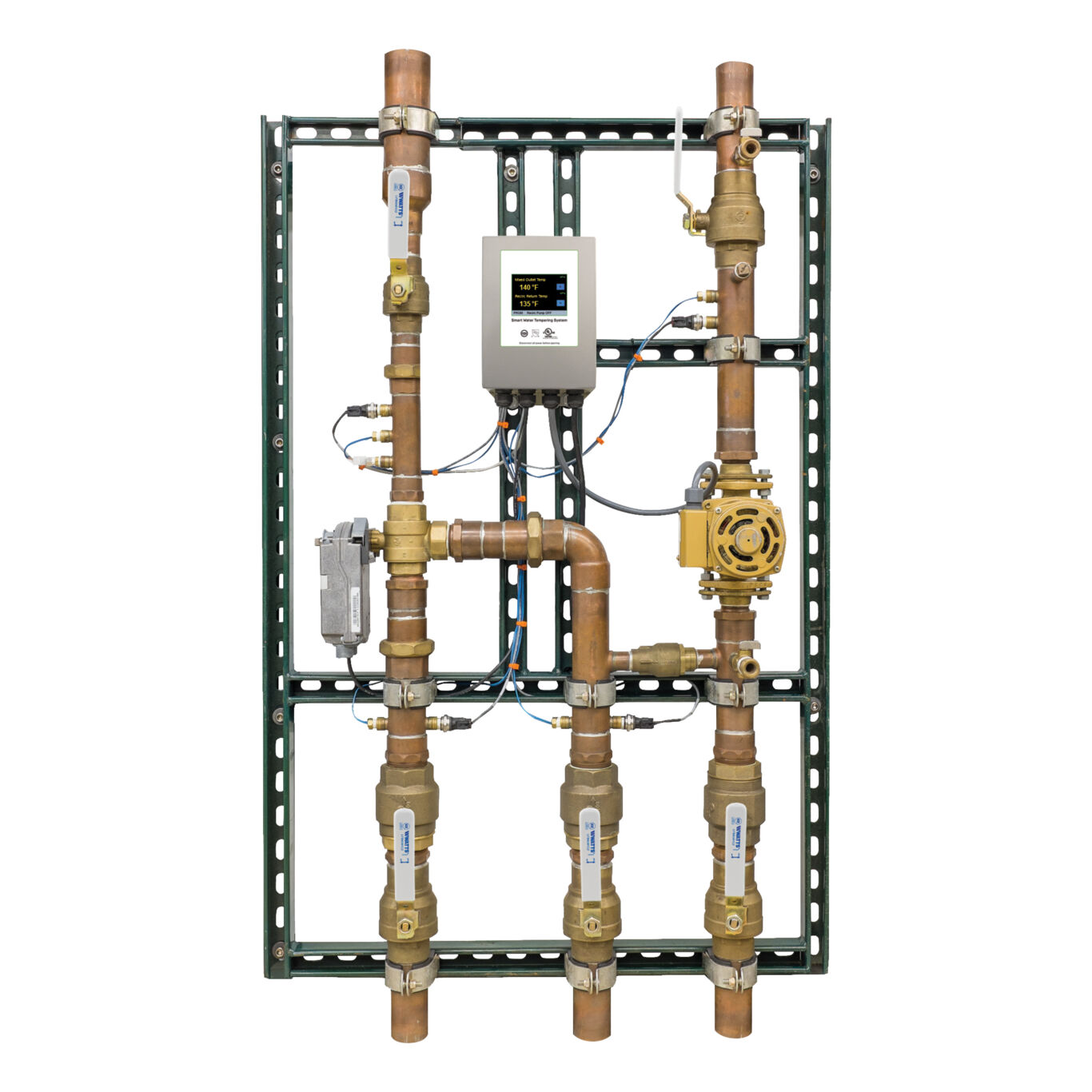

DigiTemp® Digital Water Tempering System is a hot water master blending system that provides fail-safe control for commercial, institutional and industrial domestic water applications. DigiTemp anticipates flow change to control output water temperature within ±2°F per ASSE 1017 standards. DigiTemp can be connected to a building automation system (BAS) to provide remote read/write access to a range of temperature and pressure measurements and allow adjustment of the outlet temperature setting within a pre-programmed range.
Features and Benefits
- 200 psi operating pressure
- 80° to 180°F operating range
- Programmable for building sanitation mode
- Flow from 85 to 270 GPM @ 10psi pressure drop
- Low lead certified
- “Bubble tight” shut off prevents temperature creep
- Building automation system ready
- Passcode protected for security
- User programmable high temperature alarm
- 3.5” full-color, user-selectable touch screen display
Warranty
- 5-year warranty
Certifications
- ASSE 1017, cUPC, NSF, CSA 24/UL873
