Storage Tanks
- Hot water storage tanks
- 125 - 3000 gallons
- Indoor or outdoor installation

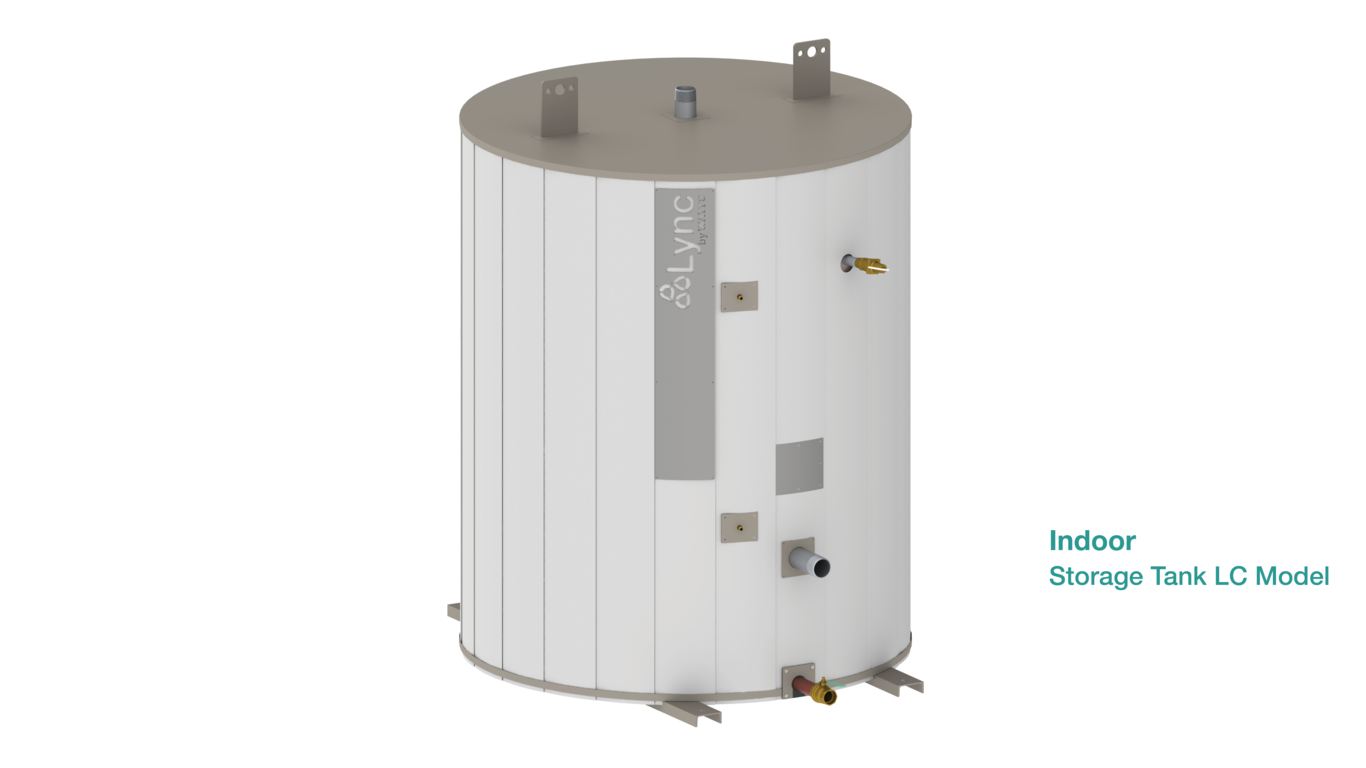

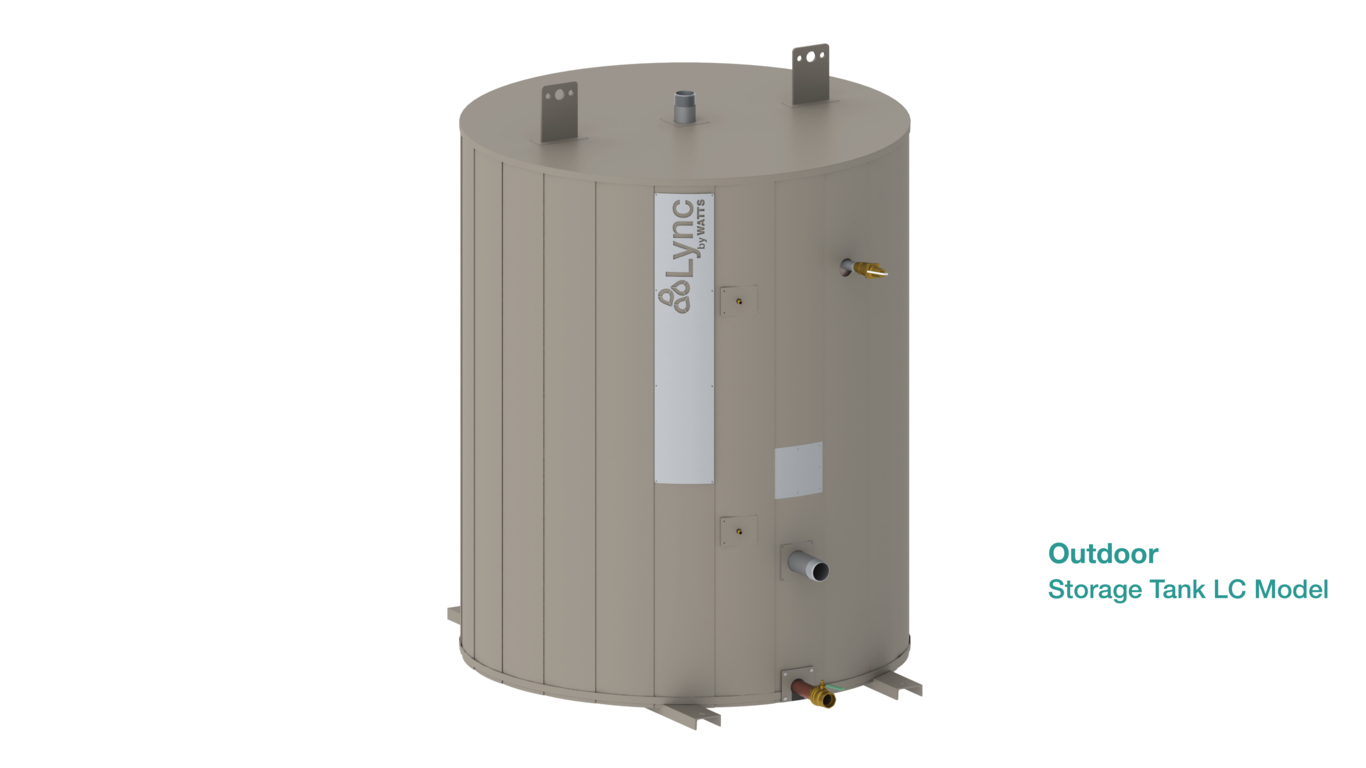

Lync LC Model storage tanks are engineered for long service life, high thermal efficiency, and seamless integration with modern heat pump water heating systems. Available in capacities ranging from 250 to 1,000 gallons, the tank is constructed entirely from duplex stainless steel, they deliver durable, low‑maintenance thermal storage for large commercial applications - indoors or outdoors.
Unlike traditional glass‑lined tanks, LC tanks require no anode rods and offer inherent corrosion resistance at elevated storage temperatures. High‑performance R‑22 insulation minimizes standby losses and supports efficient system operation, while an integral inlet diffuser promotes stratification to reduce cycling and improve hot water availability. For added flexibility, an optional Rhino Lining exterior coating enables outdoor installation in temperate climates.

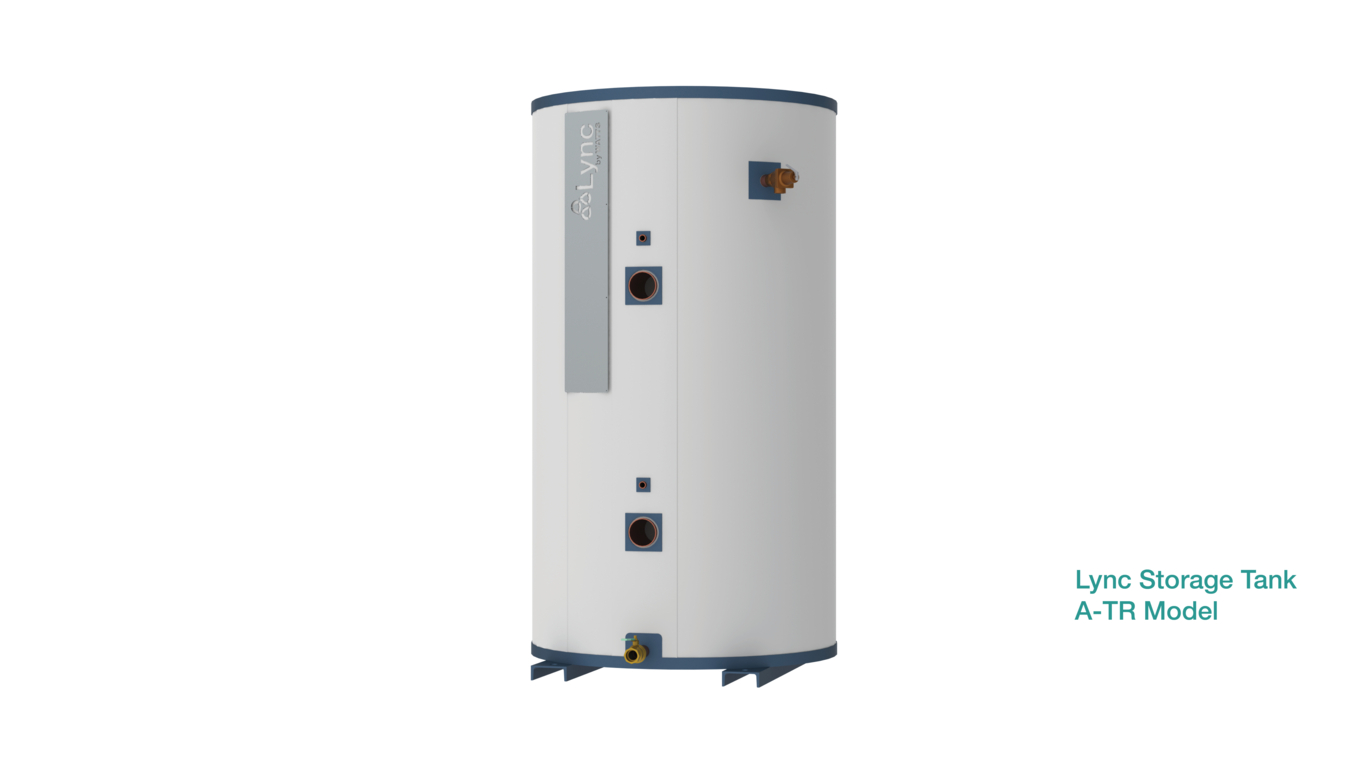

For indoor‑only applications, Lync also offers the A-TR Model storage tanks in sizes from 125 to 3000 gallons. These duplex stainless steel tanks are available exclusively when ordered with Lync Aegis heat pump water heaters and include R‑12.5 insulation to meet ASHRAE / IESNA 90.1 requirements.
Features & Benefits
- All‑duplex stainless steel construction provides a corrosion‑resistant, unlined design eliminates the need for sacrificial anode rods and supports high storage temperatures.
- High‑performance insulation reduces standby heat loss and exceeds ASHRAE 90.1 minimum insulation requirements.
- Integral inlet diffuser encourages stratification, improves system efficiency, and reduces heat pump cycling.
- Factory‑installed base head rings and clip systems provide added stability for rooftop, seismic, or high‑wind installations.
- Designed for energy‑efficient heat sources, such as for use with heat pump water heaters, solar thermal systems, etc.
- ASME and NSF compliant: ASME HLW stamped, National Board Registered, and NSF 372 lead‑free certified.
- 25‑year limited tank corrosion warranty backed by high-quality materials and advanced manufacturing processes.
- Optional outdoor‑rated Rhino Lining® coating provides a durable protective barrier for outdoor installations and added application flexibility.
Technical Documents
Technical Documents
Frequently Asked Questions
1. What are Lync storage tanks used for?
Lync storage tanks are designed to store hot water for commercial and institutional applications, supporting heat pump water heaters and other high‑efficiency systems by stabilizing demand, improving system efficiency, and ensuring consistent hot water availability.
2. What storage tank sizes does Lync offer?
Lync storage tanks are available in capacities ranging from 125 to 3000 gallons, depending on the model, allowing systems to be scaled to match building size, load profiles, and application requirements.
3. What is the difference between the LC and A-TR storage tank models?
The LC Model offers indoor or outdoor installation flexibility and is available in 250 to 1000 gallon sizes. It comes with a R-22 insulation and an optional outdoor Rhino Lining coating. The A-TR Model is designed for indoor‑only installations, comes with a R-12.5 insulation and is available in a broader capacity range from 125 to 3000 gallons.
4. Can Lync storage tanks be installed outdoors?
Yes. LC Model storage tanks can be installed outdoors in temperate climates when specified with the optional Rhino Lining protective coating. A-TR Model tanks are intended for indoor installation only.
5. How do Lync storage tanks integrate with Aegis heat pump water heaters?
Lync storage tanks are engineered to complement Aegis heat pump water heaters by promoting thermal stratification, reducing cycling, and supporting higher storage temperatures where appropriate. A-TR Model tanks are available exclusively when ordered with Aegis heat pump systems, ensuring proper system pairing and performance.
6. What materials are used in Lync storage tanks?
All Lync storage tanks are constructed from corrosion‑resistant duplex stainless steel and do not require tank linings or sacrificial anode rods, helping extend service life and reduce maintenance.
7. Are Lync storage tanks compliant with industry standards?
Yes. Lync storage tanks are ASME-certified and designed to meet applicable efficiency and safety standards, including ASHRAE and NSF requirements, depending on model configuration.
