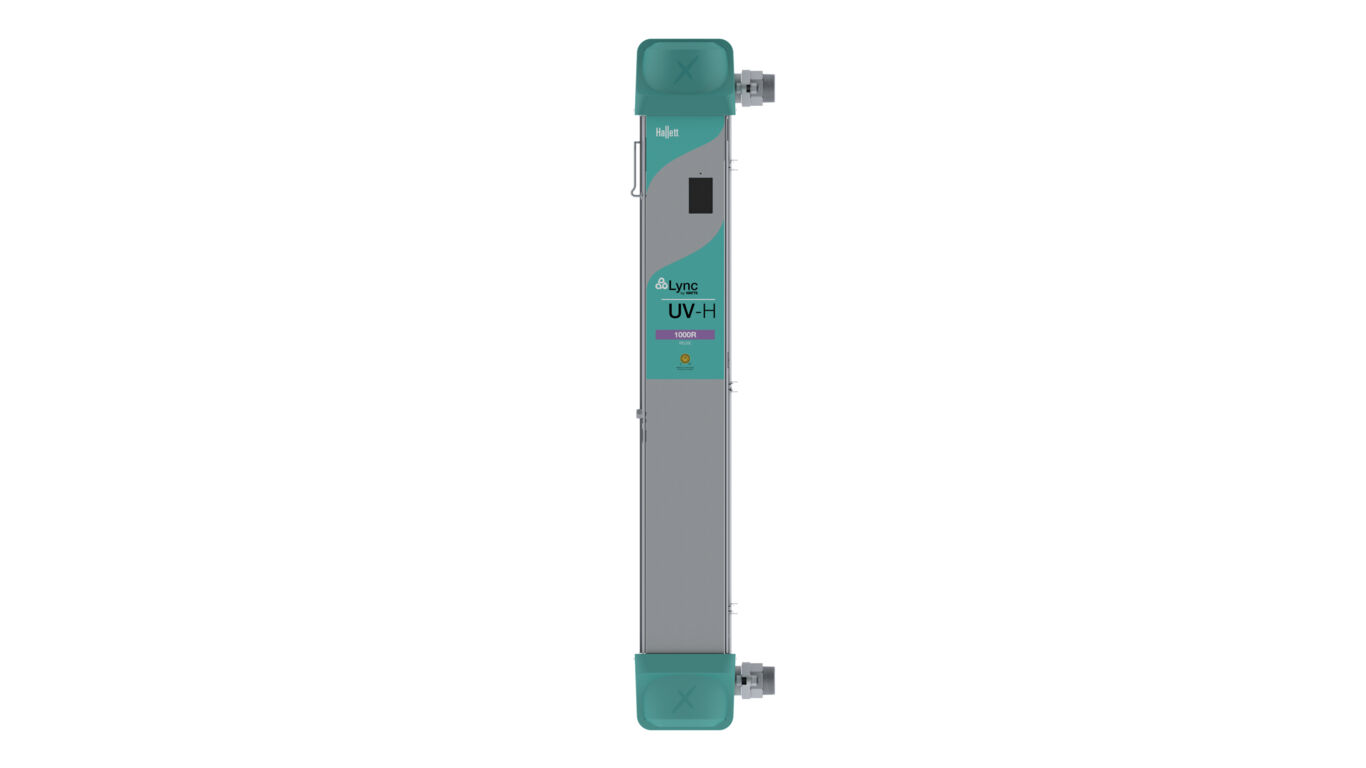

UV-H Reuse

Lync UV-H Reuse is a state-of-the-art UV water disinfection system that provides superior performance in treating and disinfecting water for reuse and rainwater applications. It mitigates health concerns by being highly effective in inactivating Legionella bacteria*.

The advanced features of UV-H make it a reliable and unique system that requires the least amount of operator’s time to maintain them. Depending on application, clarity of water, and certifications, UV-H systems are configurable at flow rates up to 75 GPM per system.

Using Lync UV-H for disinfecting reuse water can mitigate the risks associated with microbiological contamination and biofilm formation in equipment and piping systems. This gets achieved without dosing any chemicals that are not only corrosive but also leave harmful disinfection byproducts in water.

All wetted materials are certified to NSF/ANSI/CAN 61 & NSF/ANSI 372.

*Minimum of 99.9999% (6-log) inactivation.

Features and Benefits

Advanced Features for Superior Performance

• Elliptical reflector design that captures and redirects UV energy from 360 degrees to minimize UV shadowing and prevent live transfer of bacteria and microorganisms
• Dual air-mounted lamps with forced air cooling that provide better UV chamber temperature control, helping to eliminate false lamp alarms
• Dual UV sensor array that provides real-time monitoring of UV lamp intensity, UV dose and net UVT while enabling superior on-board diagnostics for troubleshooting

Engineered for Trouble-free Maintenance

• Automatic self-cleaning wipers and built-in purging that prevent fouling of the quartz sleeve by mineral scaling and biofilm, making UV-H up to 10 times more effective in difficult water applications than conventional UV systems
• Having access to UV lamps from the front cabinet that not only avoids the need for maintenance clearance at top and bottom of the system, but also makes the lamps replacement as easy as possible

Additional Features

• Color touchscreen interface
• Two dry contacts for warning and alarm signals
• Message history that stores the last 99 messages with timestamp
• Built-in surge protection
• Built-in forced-air cooling system
• Built-in mechanical wiper with wiper position switch
• Built-in onboard diagnostics
• Remote start capability
• 4-20 mA output with MODBUS connectivity (optional)
• Data logging through USB port (optional)
• Automatic solenoid shut-off valve (optional)
